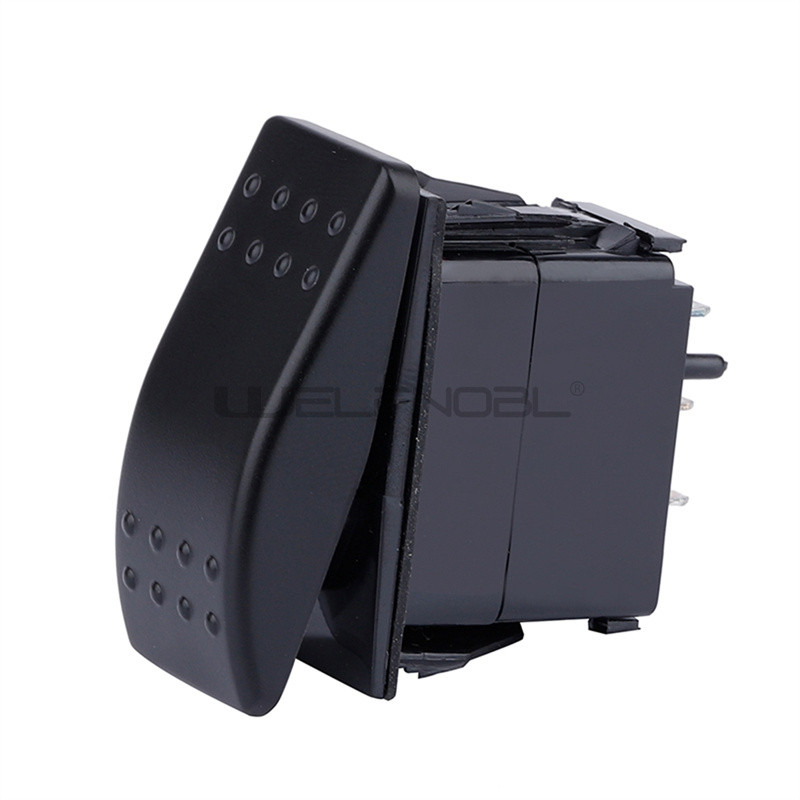

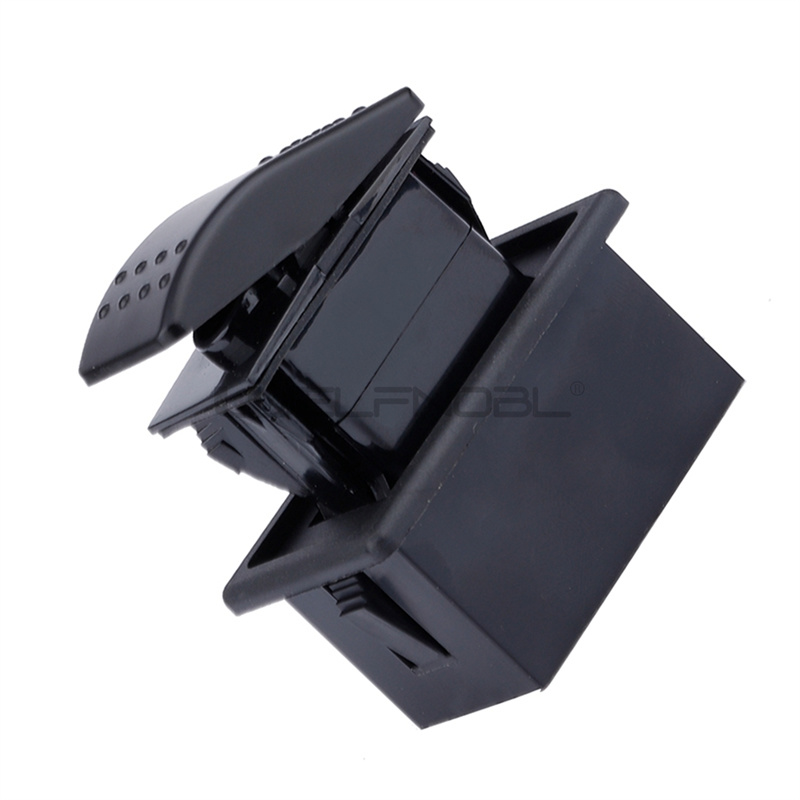

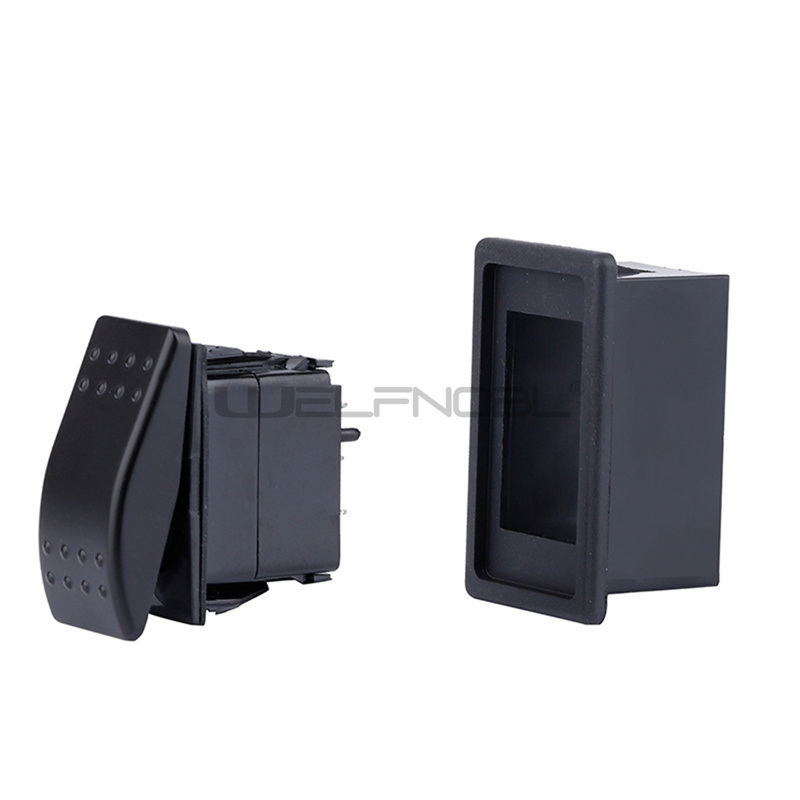

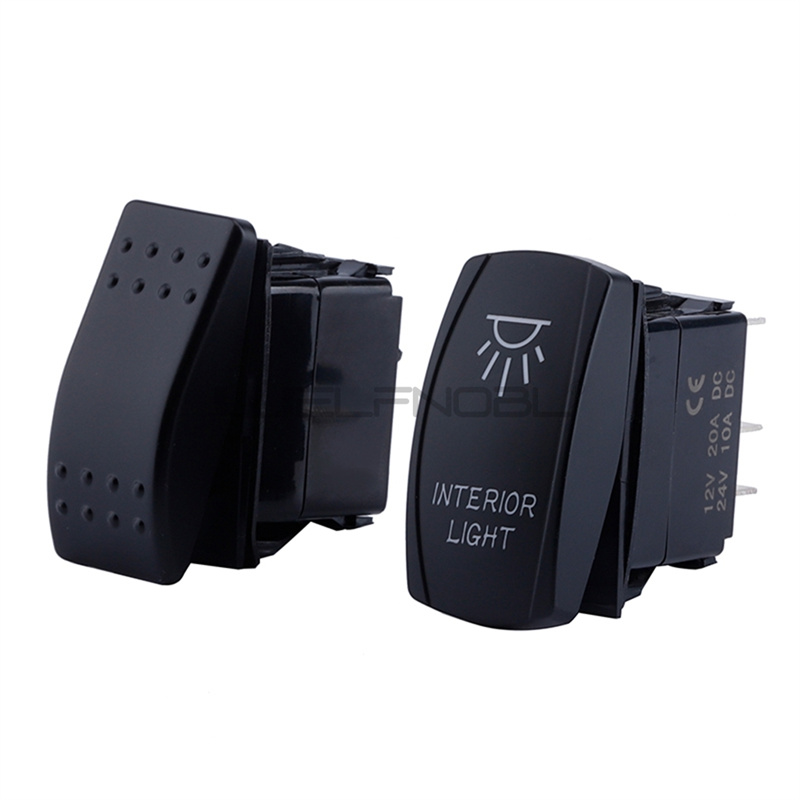

3Pin SPDT (On)-Off-(On) Toggle Switch
IB-A11111CB 12V/20A 24V/10A Waterproof Momentary Rocker Switch 3Pin SPDT (On)-Off-(On) Toggle Switch for Marine Boat Car Truck Trailer 4x4 Caravan RV SUV ATV UTV Universal
Specification
Brand: WELFNOBL
Terminal: Spade
Item dimensions L x W x H: 1.95 x 0.96 x 1.93 inches
Circuit Type: 1-way
Switch Type: Rocker
Material: Acrylonitrile Butadiene Styrene (ABS)
Mounting Type: Panel Mount
Connector Type: Plug In
SPDT:
3 Pin
Single Pole Double Throw ( SPDT )
3 Position Switch Functions: on off on, (on) off (on)
SPST:
2 Pin
Single Pole Single Throw ( SPST )
2 Postion Switch Functions: on off; (on) off
DPDT:
6 Pin
Double Pole Double Throw ( DPDT )
3 Position Switch Functions : on off on; (on) off (on)
Plain button universal for all 12V electrical devices
Voltage: 20A 12V DC;10A 24V DC
Size of Drill: 37.2 x21.2 mm
High quality abs material for durable use
Idea for cars boats utv tractors trailer and other auto vehicles
Multi-functions: SPST, SPDT, DPDT
About this item
Single pole double throw momentory on-off-momentory on type. It works when you press the switch up or down, it will return off position when you remove your fingers. Desigined with 3 pins, no complicated wiring. fast & easy installation
Made of high-quality ABS and electronic components, non-lighted, energy-saving, long lasting durability
Working condition: operating temperature -40℃-+85℃,Rated at 20amp/12v DC and 10amp/24v DC ,waterproof IP66
Surface size: 49mm x 24mm;required mounting hole size is 37.2 mm x 21.2 mm
Suitable for all 12 / 24v car battery installation, such as cars , motorcycles , buses, boats , RVs , trailers, etc. Great replacement switch for car light control, such as LED light bar, fog lamps, headlights, taillights ,auxiliary lamps, side light, etc.
Specifications
|
Product Name |
3Pin SPDT (On)-Off-(On) Toggle Switch |
|
Feature |
Waterproof |
|
Housing Color |
Black |
|
Operation Type |
(On)-Off-(On) |
|
Terminal Qty |
3 Pins |
|
Voltage |
12/24V |
