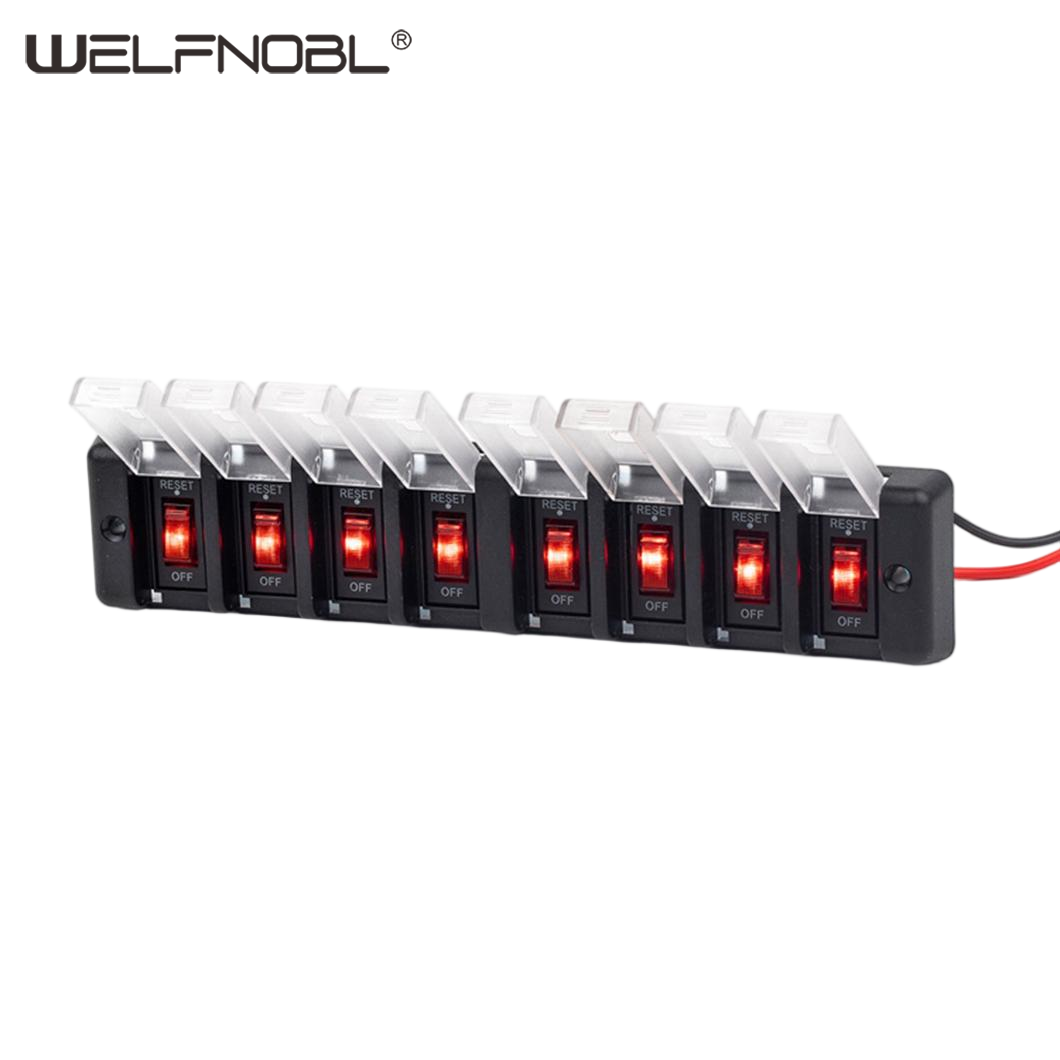

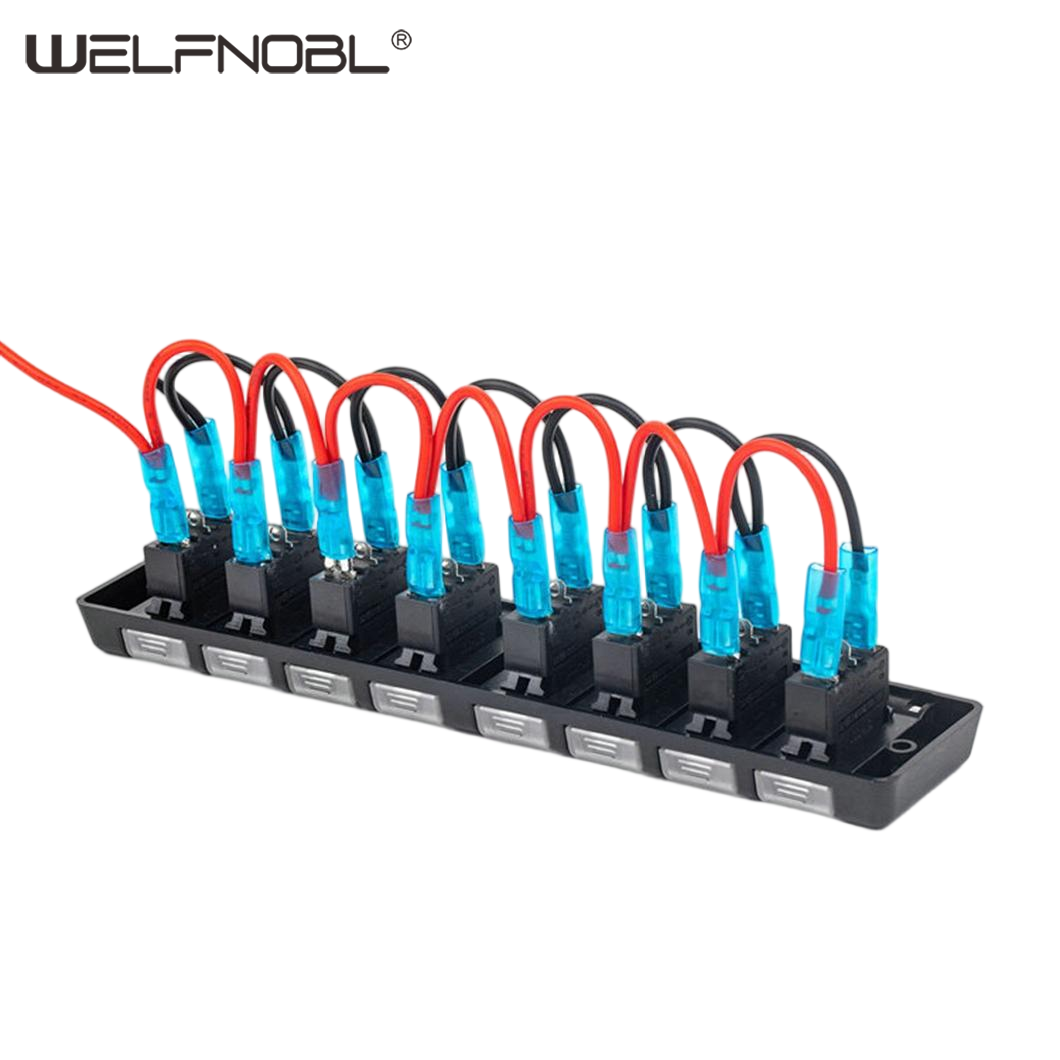

8 Gang Marine Momentary Rocker Switch Control Panel

IB-P803 8 Gang Marine Momentary Rocker Switch Control Panel Marine With Circuit Breaker Rocker Switch

Description

Material: Environmental Protection Flame Retardant Nylon Material

Color: Black + Red

Product Configuration: Circuit Breaker x 8  Stainless Steel Screw x 2

Product Size: 50 x 130mm/2" x 5.1"

Mounting Hole Size: 37 x 90mm/1.5" x 3.5"

Package Weight: approx. 136g

Working temperature: -25 ℃ - 80 ℃

Protection class: IP66

Number of switches: 8

Single switch maximum withstand current: 16A

When load is enabled,press the switch to the RESET position,when load isturned off.press the switch to the OFF position.When the current of electric appliance is too large, or short circuit,switch will jump automatically to the OFF position,replace a load andrestart, it can run again.

*PC WATERPROOF AND DUSTPROOF COVER There has a transparent PC cover on each switch to prevent waterand dust entering it. It will reduce corrosion of switch by waterand dust,and prolong the service life of the switch.

*ADHESIVE STICKER There has 1 piece of adhesive sticker will be included within eachset of product. Those stickers will be printed the commonly name ofthe load electrical appliances on it.They can be sticked on the corresponding outside postion of transparent PC shell to mark the electric appliance. When the electric appliance is failured,you canfind the corresponding failured electricn appliance soon. It is veryconvenient.

*ABS ENVIRONMENTAL PROTECTION MATERIAL ABS( Resistance to flame retardant@high and low temperature resistant environmental protection material). It will work from -25℃- 80℃working temperature. Highly optimized for general use,due to its lower requirments of working environments.

*12V INPUT VOLTAGE lt is widely used on car,SUV,sports car,bus,yacht,ship as long as the input voltage is 12V.
