How to Wire a Boat Toggle Switch: A Professional Guide for Marine electrical Installations

Wiring a toggle switch on a vessel is pretty easy, but with the unique nature of marine environments, making sure your connections meet high standards for safety, reliability and corrosion resistance is a must! The way you connect your wire to the switch will have a direct impact on how well your equipment operates and how safe your vessel is (i.e. deck lights, bilge pumps, horns, navigation lights, livewell pumps, etc.).

In this article, you will learn how to properly wire a boat toggle switch and determine what parts are necessary; in addition to knowing what type of switch would best fit your particular installation based upon boat expectations. Boatowners, installers, distributers and consumers of marine products should gain knowledge of these basic principles so that they will have a better quality marine electrical installation.

What Is a Boat Toggle Switch?

The Boat Toggle Switch is a basic manual switch that is utilized to make or break an electrical connection. This switch is operated by means of a lever actuator and will allow an operator to switch on/off a piece of marine equipment by using the movement of the lever to interpret the mechanical action of the switch. In general the boat toggle switch has many advantages including; compactness, functionality, and ease of operation, therefore they have become the standard application for all types of marine applications.

Marine Rocker Switches can be utilized in place of standard toggle style switches in most current installations. 12v marine rocker switches are commonly found in boats, RVs, off-road vehicles, and other low voltage DC systems due to the fact that most accessories operated onboard are designed to run on 12 volts. Rocker switches allow for a much more "integrated" appearance of the panel and some have built in LED lights that provide improved visibility.

How to Wire an Illuminated Marine Rocker Switch

A basic toggle switch is not a good comparison to an illuminated rocker switch because it can have an integrated LED indicator in the switch itself. An illuminated rocker switch typically has 3 terminals: input, output, and ground; however, there are more advanced illuminated rocker switches that have more than 3 terminals for use with dual illumination, multiple positions, or other special functions.

In a typical three-pin rocker switch arrangement, the power input pin gets +12V from the fuse panel. The output pin then sends +12V to the accessory, while the ground pin connects to the negative bus bar to complete the circuit for the LED indicator.

A major advantage of using a boat marine rocker switch is its ability to provide a visual indication of a circuit's status. If used at the helm and/or switch panels as an external source of control to multiple accessories, it is necessary to have a clear indication of circuit on/off during night operation.

How to Select the Right 12V Marine Switch

The first step to finding the right switch for your boat is to find out what the required voltage and electric capacity for the switch is. Most small or medium boats run on 12 volts of direct current, but in order to work properly, the current supplied to the switch must match the load being connected to it. The switch should be rated at a higher current than the load will draw from it when in use.

The installation area is another important factor to consider in selecting the right type and amount of sealing for a switch. A switch in a protected location (such as a cabinet) may not require as much sealing as an exposed switch being used in an area that is going to be splashed or submerged. Select a waterproof or water-resistant switch that is rated for the marine environment when the switch will be exposed to outside elements or subject to water splashing on it.

When designing a switch, consideration should also be given to its visibility and identification; back-lit rocker switches, or illuminated rocker switches, improve ease of use in dimly lit environments. Furthermore, clear labeling helps reduce operator errors, especially with respect to critical circuits like bilge pumps, navigation lights, anchor lights and livewell pumps.

When evaluating a product to purchase during a marine rocker switch sale, it is important to evaluate the product(s) for refits, repairs and resale inventory as a means to help reduce costs. Price can also be one of your considerations, but it should not be the main consideration. The electrical rating, manufacturing quality, seal effectiveness and installation assistance should weigh more with regard to long-term reliability.

FAQ: Boat Toggle Switch and Marine Rocker Switch Wiring

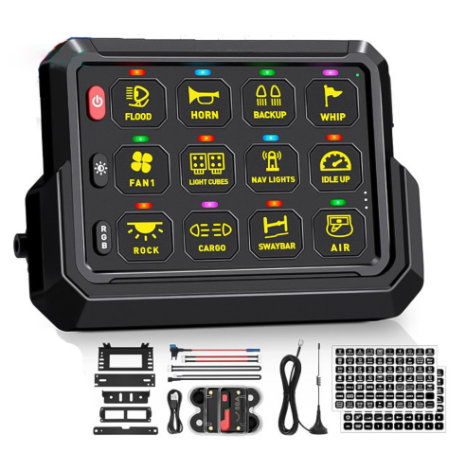

How to wire in a switch panel?

To set up wiring for a switch panel, connect the switch panel's main power supply (positive) feed to a correctly sized fuse or circuit breaker that is close to either your battery or distribution point. Then connect the switch panel's negative bus to the negative bus of the vessel. Each switch's output (positive), must be connected to the positive (power) side of its corresponding accessory; and each accessory that has a negative (ground) wire, must return to the vessel's negative bus bar.

If a marine switch panel has built-in fuses or circuit breakers, then the protection device should be selected for use based on the accessory's current draw as well as the wire's gauge. When the panel has LED indicators, there will need to be a negative connection in order for the lights to work. It is important that you refer to the wiring diagram furnished by the panel's manufacturer.

Can I wire a boat switch directly to the battery?

Although it is possible to use battery power, it must have an appropriately rated fuse or circuit breaker located as near to the positive terminal of the battery as possible and connected in between the battery and switch/accessory. An unfused positive wire that connects the battery directly to the switch/accessories should never be used.

Does a marine rocker switch need a ground wire?

If a rocker switch does not have an illuminated LED and only has one terminal it may not require any ground wiring; however, if there is an illuminated LED, there will typically be at least two terminals with a third being the ground, and thus, the ground wiring can be confirmed from the wiring diagram provided by the Manufacturer.

What size fuse should I use for a boat switch?

To select an appropriate fuse size for an accessory, you need to take into consideration the current draw from the accessory as well as the type of wire used to create the circuit. The fuse will keep the circuit operational when the accessory is used within its normal operating range, while also protecting the wire from being overloaded. When choosing a fuse rating, use the manufacturer's instructions and/or national electrical code requirements.

Can I replace a toggle switch with a rocker switch?

It is possible to replace a toggle switch with a rocker switch provided that their voltage rating, current rating, and functions as switches are the same however this can require modifying the panel cutout due to different mounting styles. If the rocker switch that you are replacing the toggle switch with is illuminated there will likely be need for an additional ground wire since many rocker switches utilize internal light bulbs, LED's, etc.

Why does my switch get hot?

A switch may heat up because of an overload, loose connections, undersized wiring, corroded components, or worn out switches. The circuit should be turned off and inspected at once. Any heat present in a marine electrical circuit represents a possible defect and should never be ignored.
