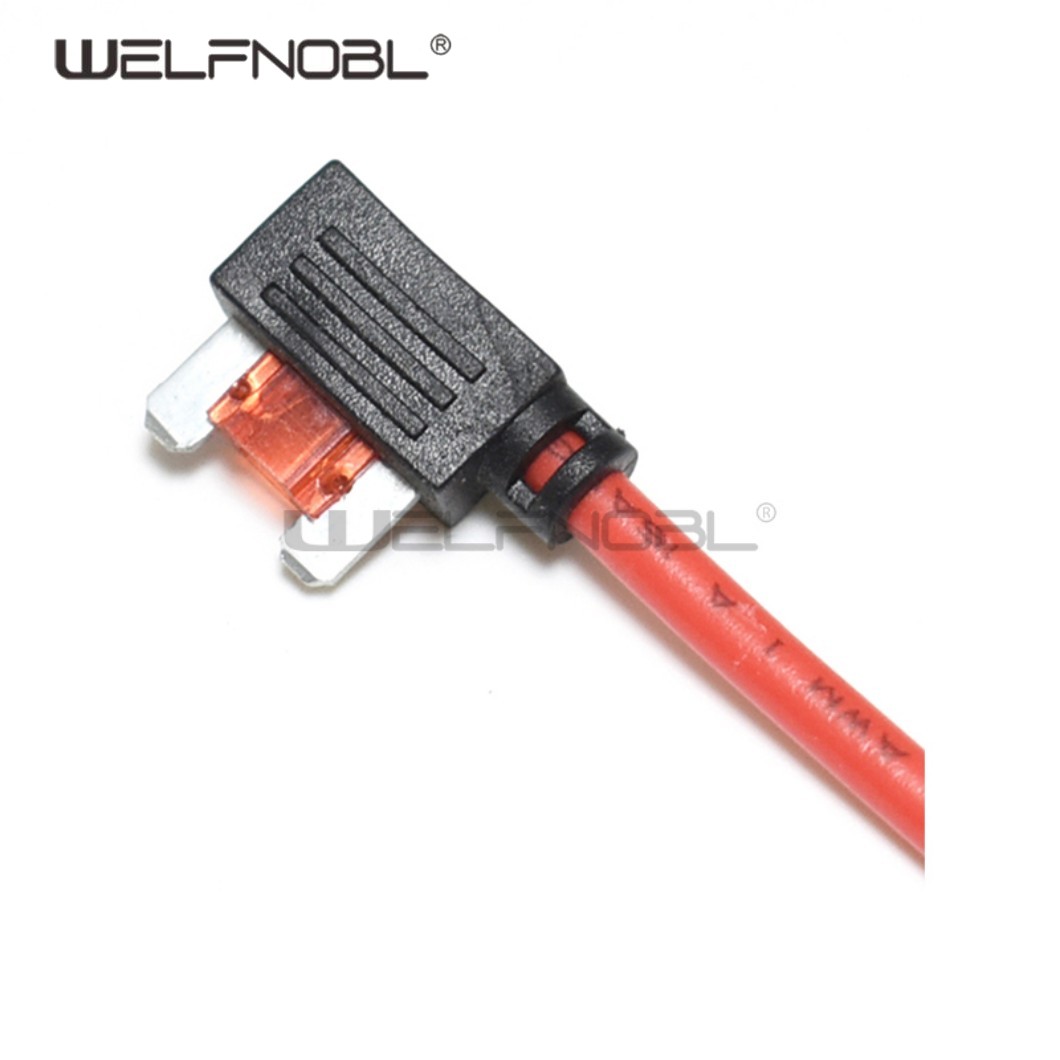

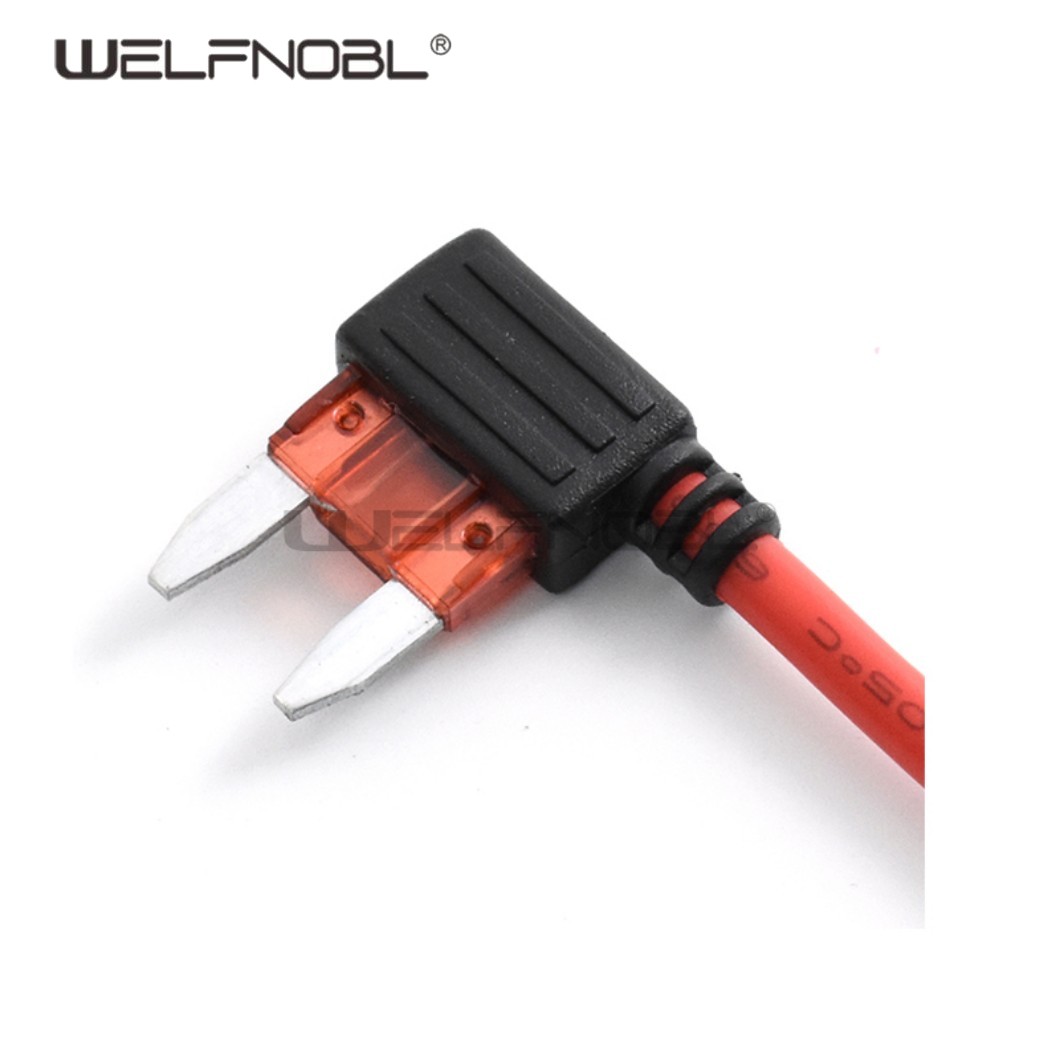

WNF-F02 ATO Blade Fuse Holder
Description
WNF-F02 16 Gauge AWG 10A Car Vehicle ATC/ATO Blade Fuse Holder
Use Dual Fuse Tap to Power to Car Accessories:
Car Black box
Car alarms
Remote starters
Car locators (theft recovery systems)
Engine block heaters
DVD players
Satellite radio
GPS
Cell charger
Installation is Easy:
1. Simply remove an existing fuse from the fuse box, insert that fuse in to the bottom slot of the fuse tap.
2. Insert a suitable fuse for the new accessory in to the top slot.
3. Crimp your new live wire to the blue butt terminal on the fuse tap.
4. Insert the fuse tap into the fuse box slot where the fuse originally was.
The Feature of ATO ATC ATY Standard Middle Medium ATN ATS Min ATT Low Profile LP ATA Micro 2 Micro 3 Blade Style Car Fuse Tap Connector Adapter :
1. Dual-slot Fuse Tap. The fuse tap turns one slot into two slots, Provides one fuse holder to protect the existing circuit, and a second fuse holder to protect the new circuit.
2. Easy Crimp Pigtail. Made of high-quality nylon plastic, anti-wear and anti-corrosion, very sturdy and durable; the thermoplastic-insulated wire is high temperature and melting resistant. The pigtail is very easy to crimp the wires for new devices or accessories.
3. Premium Wire. Cable Type: Heavy duty customizable gauge wires.
4. The plastic of the main body of the fuse: It acts as an insulating support and protects the melt from external force damage. The material used by our company is PC material or nylon material, which is a kind of high-strength flame-retardant material, impact resistance, abrasion resistance and other characteristics, which can meet the demanding requirements of fuses.
5. The fuse tap is required to have anti-current, anti-voltage, corrosion resistance, fire resistance, etc. Our use nylon (PA66) material with extremely high chemical stability, which is wear-resistant and environmentally friendly, and has good mechanical properties.
6. Metal contact feet. The material selected by our company is high-quality zinc alloy material. The metal touch heel fuse melt is integrally formed, acting as a bridge for the current to enter and exit the melt.
specification
Rated Current |
1A-30A (1A, 3A, 5A, 7.5A, 10A, 15A, 20A, 30A) |
Rated Voltage |
32V DC |
Fuse Size |
ATO ATC Standard ATN ATS Min ATT Low Profile LP ATA Micro 2 Micro 3 Blade Fuse |
Housing/Cover Material |
PC |
Insulation Body |
PVC, Nylon |
Contacts |
Nickel/Tin Plated Brass |
Color |
Black Holder, Red Wire |
Available Wire Gauge |
Customized |
Wire/Cable Length |
Customized |
Waterproof Level |
IP67 |
Terminal |
Transparent Terminal Or Blue Insulation Terminal |
Feature |
Splashproof, Waterproof, Water Resistant, Dust Proof |
Application |
Forklift, trailer, golf cart, yachts, boats, marine, tankers, ships, cruise ships, SUVs, UTVs, ATVs, RVs, vans, saloon, jeeps, motors, trolling motors etc |
